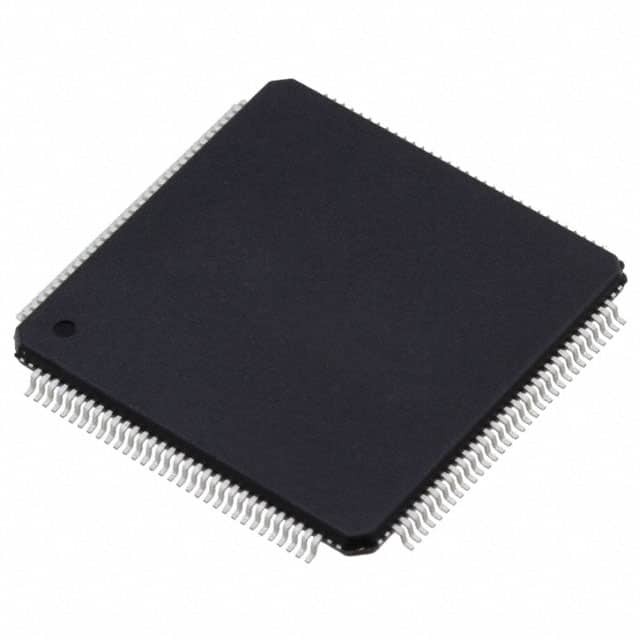

ADC08D1520CIYB

SKU: 51324

Manufacturer: Texas Instruments

2-Channel Dual ADC Folding/Interpolating 3Gsps 8-bit Parallel 128-Pin LQFP EP Tray

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.5.a.1
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Interpolating
Resolution	8bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	3Gsps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Single
Input Voltage	0.65Vp-p/0.87Vp-p
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	1.9
Maximum Single Supply Voltage (V)	2
Maximum Power Dissipation (mW)	2350
Integral Nonlinearity Error	±0.9LSB
Full Scale Error	±25mV
Signal to Noise Ratio	47dB(Typ)
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Original Package	LQFP EP
Pin Count	128
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	20
Package Width	20
PCB changed	128
