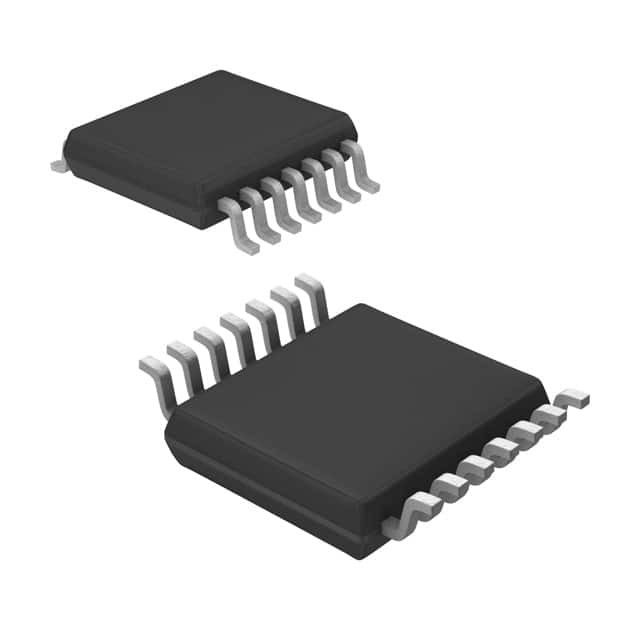

ADC088S102CIMTX

SKU: 60201

Manufacturer: Texas Instruments

8-Channel Single ADC SAR 1Msps 8-bit Serial 16-Pin TSSOP T/R

2570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	8bit
Number of ADCs	1
Number of Input Channels	8
Sampling Rate	1Msps
Digital Interface Type	Serial (SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Supply
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Analog and Digital
Input Voltage	5.25V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.25
Integral Nonlinearity Error	±0.2LSB
Full Scale Error	±0.6LSB
Signal to Noise Ratio	49.6dB(Typ)
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Supplier Temperature Grade	Extended Industrial
Original Package	TSSOP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
