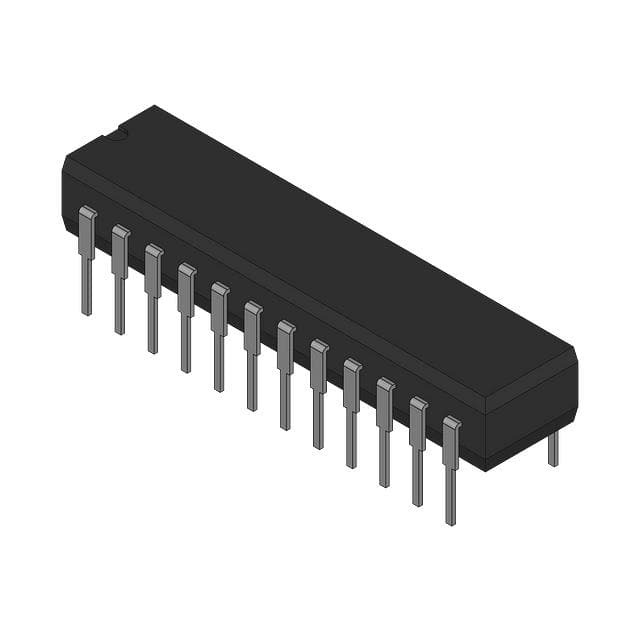

ADC0848CCN

SKU: 137919

Manufacturer: Texas Instruments

8-Channel Single ADC SAR 25ksps 8-bit Parallel 24-Pin PDIP Tube

160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	8bit
Number of ADCs	1
Number of Input Channels	8
Sampling Rate	25ksps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Pseudo-Differential
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	6
Typical Power Dissipation (mW)	15
Maximum Power Dissipation (mW)	875
Integral Nonlinearity Error	±1LSB
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	24
Standard Package Method	DIP
Original Package	PDIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	32.26(Max)
Package Width	7.11(Max)
PCB changed	24
