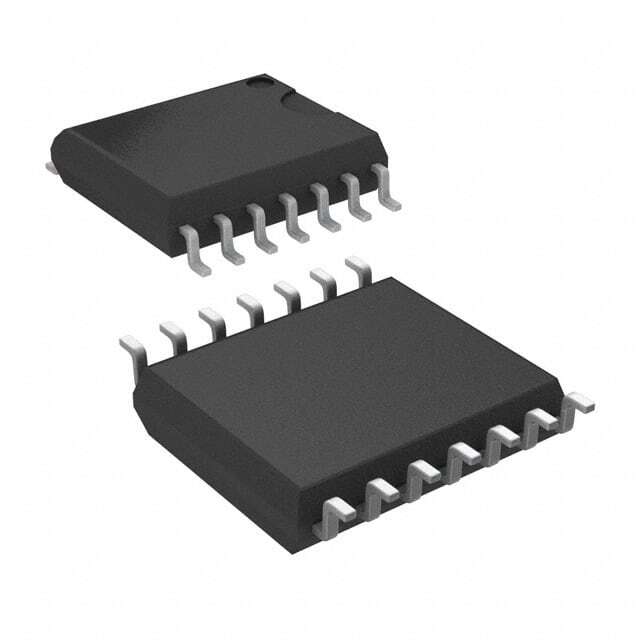

ADC0831CCWM

SKU: 116565

Manufacturer: Texas Instruments

1-Channel Single ADC SAR 31.25ksps 8-bit Serial 14-Pin SOIC W Rail

7040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	8bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	31.25ksps
Digital Interface Type	Serial (Microwire)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	6.3
Typical Power Dissipation (mW)	15
Maximum Power Dissipation (mW)	800
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Rail
Original Package	SOIC W
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.34(Max)
Package Length	9.2(Max)
Package Width	7.6(Max)
PCB changed	14
