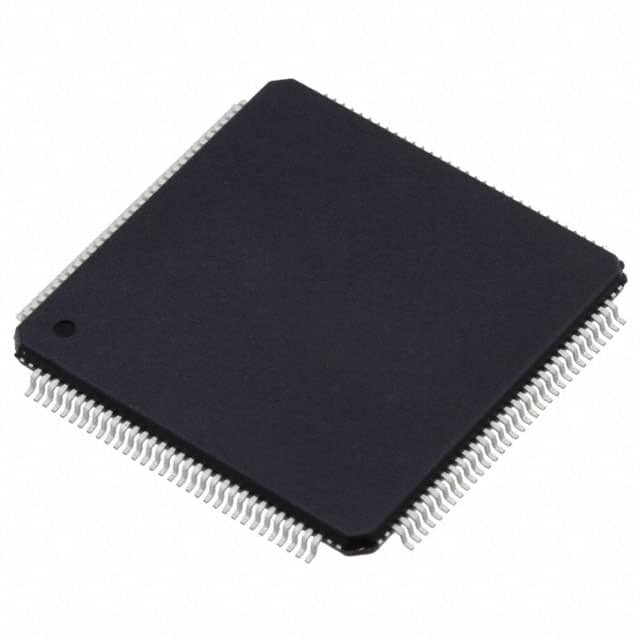

ADC081500CIYB/NOPB

SKU: 86520

Manufacturer: Texas Instruments

1-Channel Single ADC Folding/Interpolating 1.5Gsps 8-bit Parallel 128-Pin LQFP EP Tray

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001a.5.a.1.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Folding
Resolution	8bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	1.5Gsps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Single
Input Voltage	0.65Vp-p/0.87Vp-p
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	1.9
Maximum Single Supply Voltage (V)	2
Typical Power Dissipation (mW)	1200
Maximum Power Dissipation (mW)	2000
Integral Nonlinearity Error	±0.9LSB
Full Scale Error	±25mV
Signal to Noise Ratio	47dB(Typ)
No Missing Codes (bit)	8
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Original Package	LQFP EP
Pin Count	128
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	20
Package Width	20
PCB changed	128
