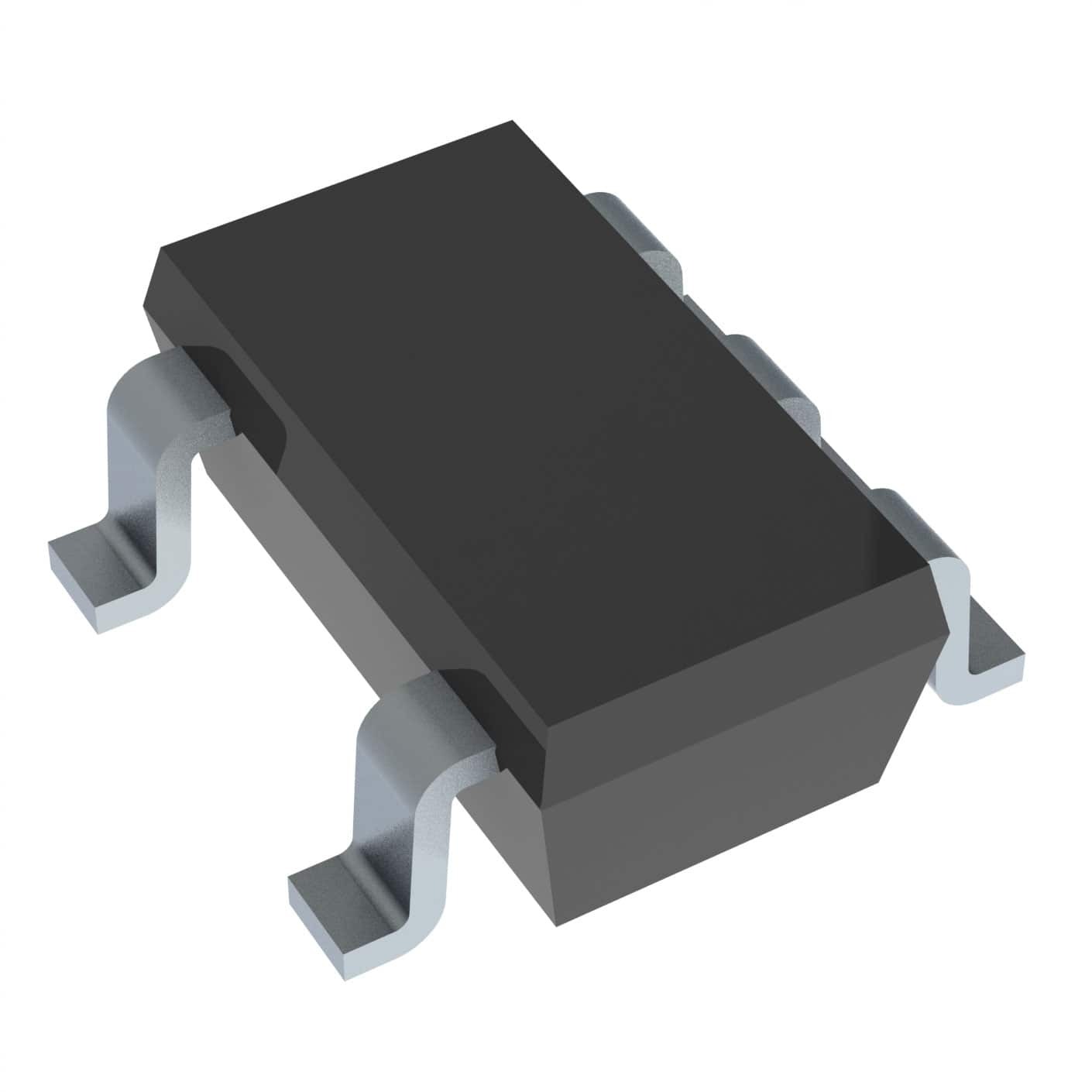

74AUP1G125DBVR

SKU: 24378

Manufacturer: Texas Instruments

Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	AUP
Logic Function	Buffer/Line Driver
Number of Elements per pcs	1
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Input Enables per Chip	0
Number of Outputs per Chip	1
Number of Output Enables per Chip	1 Low
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	6@3.3V
Absolute Propagation Delay Time (ns)	25.5
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	4
Maximum High Level Output Current (mA)	-4
Operating Supply Voltage-Min (V)	0.8
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Tolerant I/Os (V)	3.6
Maximum Quiescent Current (uA)	0.5
Propagation Delay Test Condition (pF)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOT
Pin Count	5
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	5
