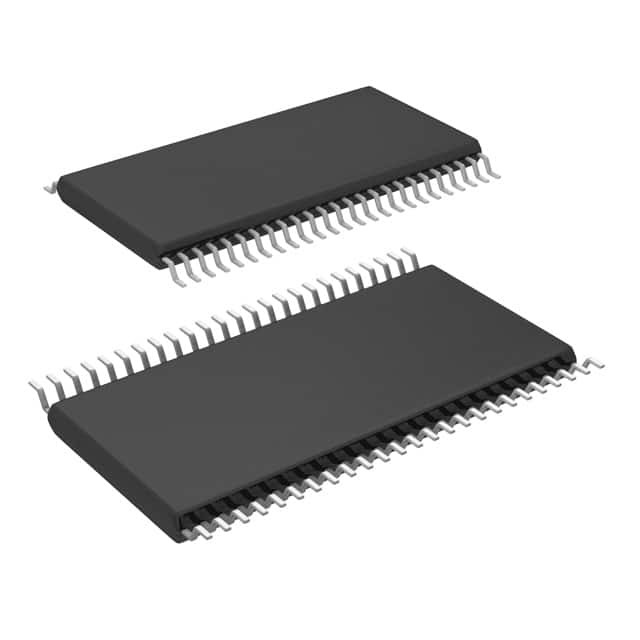

74ACT16244DGGR

SKU: 45701

Manufacturer: Texas Instruments

Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin TSSOP T/R

4050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	ACT
Logic Function	Buffer/Line Driver
Number of Elements per pcs	4
Number of Channels per Chip	16
Number of Inputs per Chip	16
Number of Input Enables per Chip	0
Number of Outputs per Chip	16
Number of Output Enables per Chip	4 Low
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	8.7@5V
Absolute Propagation Delay Time (ns)	11.3
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	8
Propagation Delay Test Condition (pF)	50
Maximum Power Dissipation (mW)	850
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	48
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	12.6(Max)
Package Width	6.2(Max)
PCB changed	48
