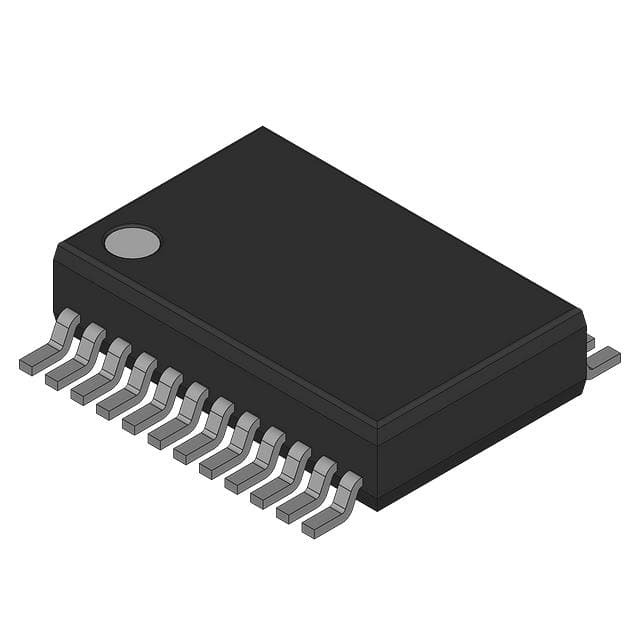

74ACT11373DBR

SKU: 130541

Manufacturer: Texas Instruments

Latch Transparent 3-ST 8-CH D-Type 24-Pin SSOP T/R

1810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	D-Type
Logic Family	ACT
Latch Mode	Transparent
Number of Channels per Chip	8
Number of Elements per pcs	1
Number of Inputs per Chip	8
Number of Input Enables per Element	1
Number of Selection Inputs per Element	0
Number of Outputs per Chip	8
Number of Output Enables per Element	1
Bus Hold	No
Set/Reset	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	10.3@5V
Absolute Propagation Delay Time (ns)	12.5
Process Technology	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	8
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	24
Original Package	SSOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	8.5(Max)
Package Width	5.6(Max)
PCB changed	24
