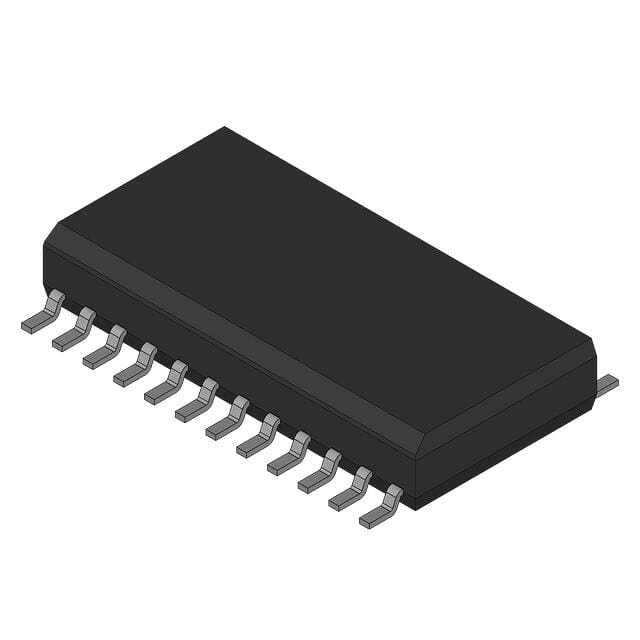

74AC11245DW Texas Instruments

74AC11245DW

SKU: 151815

Manufacturer: Texas Instruments

Bus XCVR Single 8-CH 3-ST 24-Pin SOIC Tube

Request Free Samples

970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	AC
Logic Function	Bus Transceiver
Data Flow Direction	Bi-Directional
Number of Elements per pcs	1
Number of Channels per Chip	8
Number of Selection Inputs per Element	0
Number of Output Enables per Element	1 Low
Number of Input Enables per Element	0
Number of Direction Control Inputs	1 Low/High
Bus Hold	No
Polarity	Non-Inverting
Absolute Propagation Delay Time (ns)	15.9
Maximum Propagation Delay Time @ Maximum CL (ns)	8.5@5V
Propagation Delay Test Condition (pF)	50
Process Technology	CMOS
Input Level	CMOS
Output Level	CMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Maximum Quiescent Current (uA)	8
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	1700
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	SOP
Pin Count	24
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	15.6(Max)
Package Width	7.6(Max)
PCB changed	24
