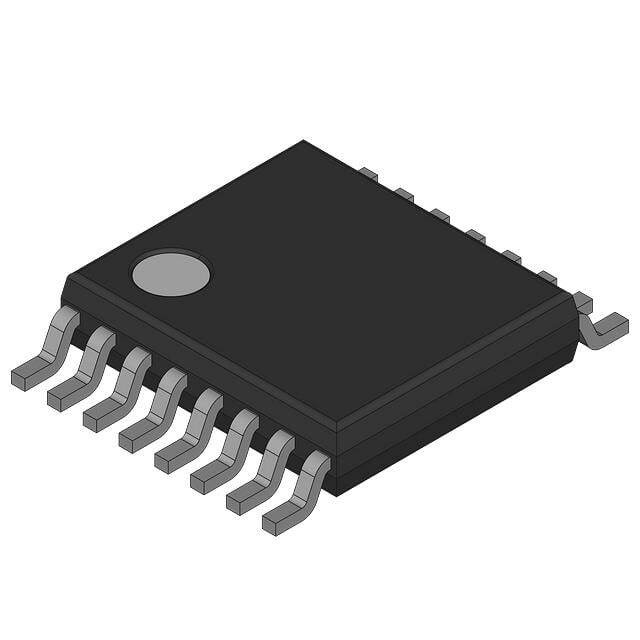

74AC11138PW

SKU: 114695

Manufacturer: Texas Instruments

Decoder/Demultiplexer Single 3-to-8 16-Pin TSSOP Tube

1920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Logic Family	AC
Logic Function	Decoder/Demultiplexer
Demultiplexing Capability	1-of-8
Number of Elements per pcs	1
Number of Element Inputs	3
Number of Input Enables per Element	3
Number of Element Outputs	8
Number of Output Enables per Element	0
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	10.9@3.3V
Absolute Propagation Delay Time (ns)	12.2
Process Technology	CMOS
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	0.004
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	16
Original Package	TSSOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
