5962-8872901CA

SKU: 107574

Manufacturer: Texas Instruments

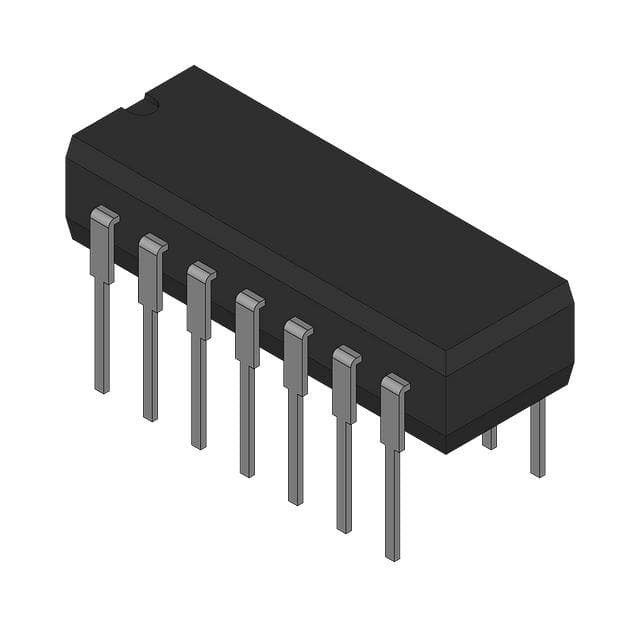

Driver 6-CH Inverting Push-Pull Bipolar 14-Pin CDIP Tube

970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	AS
Logic Function	Driver
Number of Elements per pcs	6
Number of Channels per Chip	6
Number of Inputs per Chip	6
Number of Input Enables per Chip	0
Number of Outputs per Chip	6
Number of Output Enables per Chip	0
Bus Hold	No
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	5@4.5V to 5.5V
Absolute Propagation Delay Time (ns)	5
Process Technology	Bipolar
Input Signal Type	Single-Ended
Output Type	Push-Pull
Maximum Low Level Output Current (mA)	40
Maximum High Level Output Current (mA)	-40
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Standard Package Method	DIP
Original Package	CDIP
Pin Count	14
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	19.94(Max)
Package Width	7.19(Max)
PCB changed	14
