5962-8769901MCA Texas Instruments

5962-8769901MCA

SKU: 79278

Manufacturer: Texas Instruments

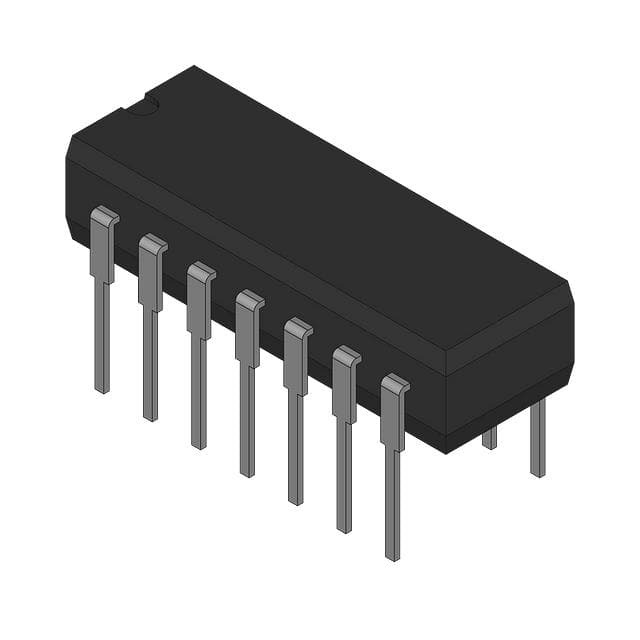

NAND Gate 4-Element 2-IN CMOS 14-Pin CDIP Tube

Request Free Samples

2970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	ACT
Logic Function	NAND
Number of Elements per pcs	4
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	9@5V
Absolute Propagation Delay Time (ns)	9.5
Process Technology	CMOS
Output Type	Push-Pull
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	2
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Standard Package Method	DIP
Original Package	CDIP
Pin Count	14
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	19.94(Max)
Package Width	7.19(Max)
PCB changed	14
