5962-8763101RA

SKU: 38555

Manufacturer: Texas Instruments

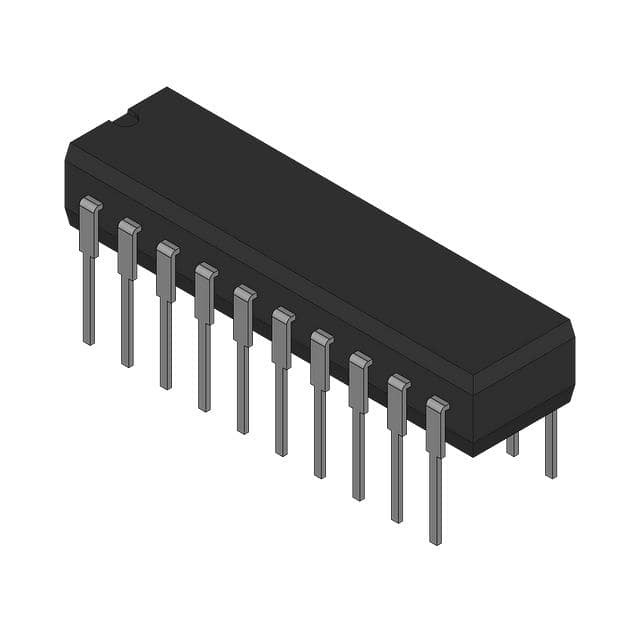

Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin CDIP Tube

2650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	ACT
Logic Function	D-Type Bus Interface
Number of Channels per Chip	8
Number of Elements per pcs	1
Number of Element Inputs	8
Number of Element Outputs	8
Number of Output Enables per Element	1
Bus Hold	No
Polarity	Non-Inverting
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	10@5V
Absolute Propagation Delay Time (ns)	13
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	0.004
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Standard Package Method	DIP
Original Package	CDIP
Pin Count	20
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	26.92(Max)
Package Width	7.62(Max)
PCB changed	20
