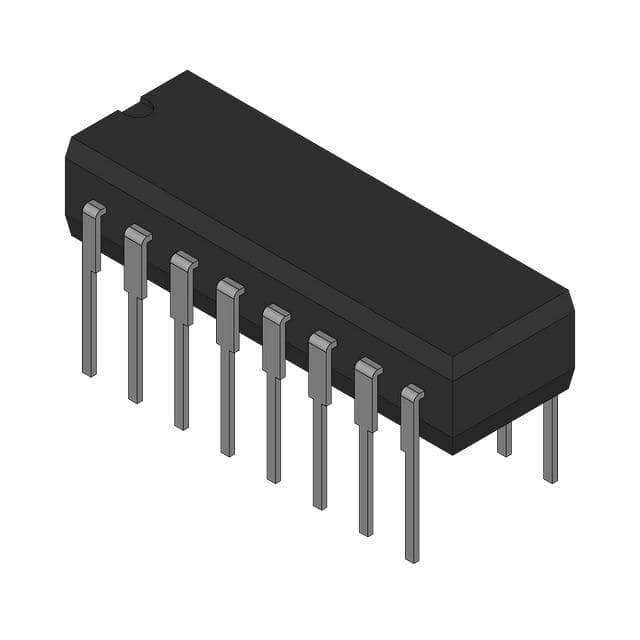

5962-8606101EA

SKU: 143107

Manufacturer: Texas Instruments

Multiplexer 1-Element CMOS 8-IN 16-Pin CDIP Tube

3630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	HC
Logic Function	Multiplexer
Number of Elements per pcs	1
Number of Inputs per Chip	8
Number of Input Enables per Element	1
Number of Selection Inputs per Element	1
Number of Outputs per Chip	4
Number of Output Enables per Element	0
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	190@2V
Absolute Propagation Delay Time (ns)	320
Process Technology	CMOS
Input Signal Type	Single-Ended
Parity Invert Input	No
Output Signal Type	Single-Ended
Maximum Low Level Output Current (mA)	7.8
Maximum High Level Output Current (mA)	-7.8
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	6
Maximum Quiescent Current (uA)	8
Propagation Delay Test Condition (pF)	150
Power Supply Type	Single
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Standard Package Method	DIP
Original Package	CDIP
Pin Count	16
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	21.34(Max)
Package Width	7.62(Max)
PCB changed	16
