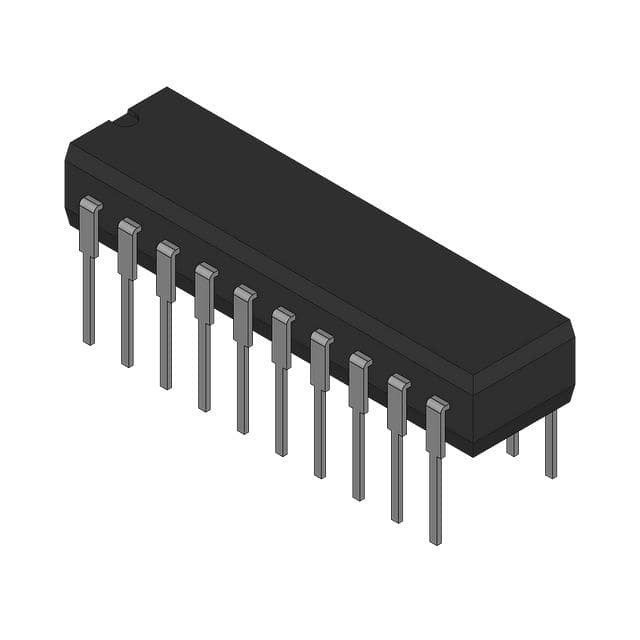

5962-8515509RA

SKU: 31412

Manufacturer: Texas Instruments

SPLD PAL Family 50MHz 5V 20-Pin CDIP Tube

1400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	PAL
Maximum Number of User I/Os	6
Programmability	Yes
Reprogrammability Support	No
In-System Programmability	No
Opr. Frequency (MHz)	50
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Tradename	PAL
Original Package	CDIP
Pin Count	20
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	26.92(Max)
Package Width	7.62(Max)
PCB changed	20
