5962-7802004M2A

SKU: 72282

Manufacturer: Texas Instruments

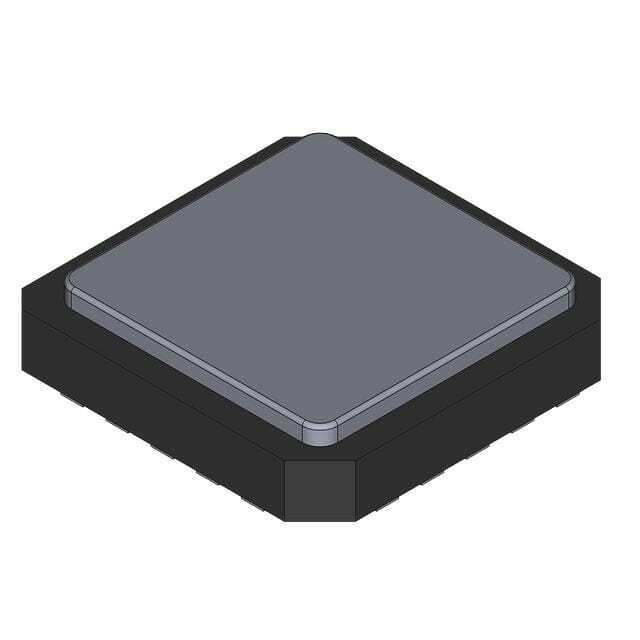

Quad Receiver RS-422/RS-423 20-Pin CLLCC Tube

910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Line Receiver
Receiver Communication Type	RS-422
Interface Standards	EIA/TIA-422-B
Data Transmission Topology	Multidrop
Number of Receivers	4
Receiver Signal Type	Single-Ended
Number of Receivers per Line	10
Driving Mode	3-State
Number of Receiver Enables	2
Operating Temperature-Min	-55
Operating Temperature-Max	125
Power Supply Type	Single
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Supply Current (mA)	70
Supplier Temperature Grade	Military
Packing Method	Tube
Pin Count	20
Original Package	CLLCC
Standard Package Method	LLCC
Terminal Form	Surface Mount
Package Height	2.03(Max)
Package Length	9.09(Max)
Package Width	9.09(Max)
PCB changed	20
