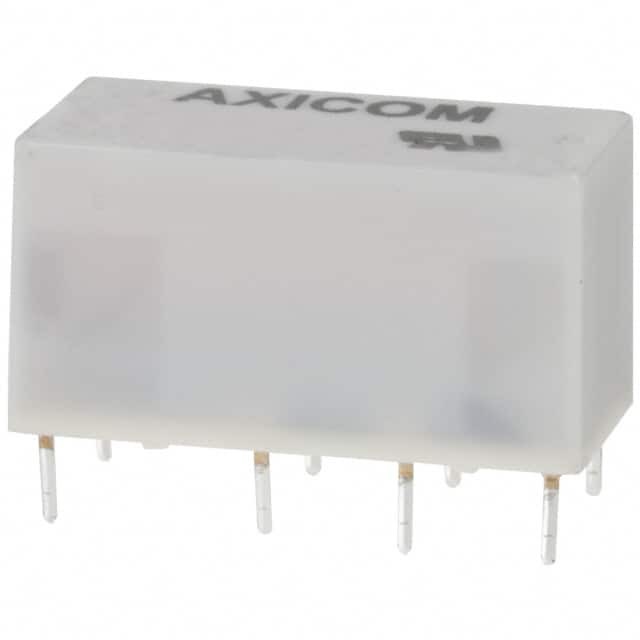

V23105A5303A201

SKU: 100235

Manufacturer: TE Connectivity

Signal Relay 12VDC 3A DPDT( (20.2mm 10mm 11mm)) THT

540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.50
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	12
Coil Current (mA)	16.67
Coil Resistance (Ohm)	720
Maximum Contact Resistance (mOhm)	<100
Maximum Pick-Up Voltage	8.4VDC
Minimum Dropout Voltage	0.6VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	3
Operate Time (ms)	6
Release Time (ms)	4
Electrical Life (Operations)	100000
Mechanical Life (Operations)	15000000
Relay Construction	Non-Latching
Contact Body Material	Silver Nickel/Gold
Maximum Switching Power	60W
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	8
IP Rating	IP67
Seal	Unsealed
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	DIP
Product Weight (g)	6
Length (mm)	20.2
Depth (mm)	10
