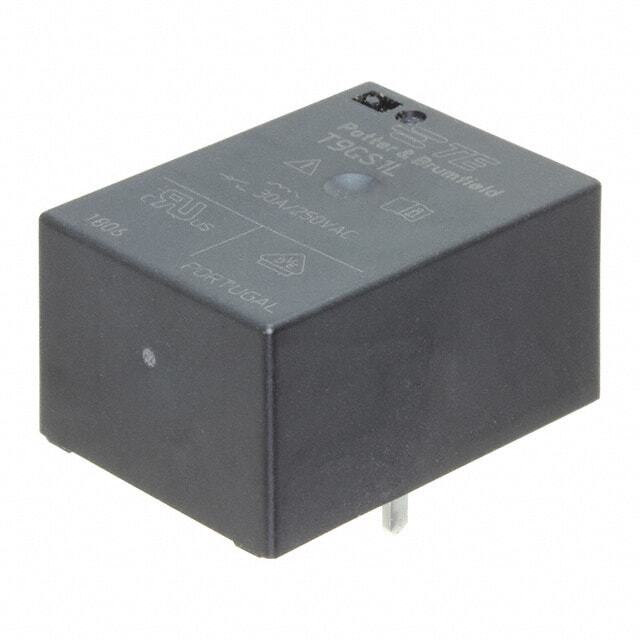

T9GS1L14-12 TE Connectivity

T9GS1L14-12

SKU: 92601

Manufacturer: TE Connectivity

Power Relay 12VDC 30A SPST-NO(29x21.5x15.7)mm THT

Download sample

Request Free Samples

3620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.75
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	12
Coil Current (mA)	75
Coil Resistance (Ohm)	160
Maximum AC Switching Voltage (V)	480
Maximum Switching Current (A)	30
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	105
Product Weight (g)	18
Length (mm)	29
Depth (mm)	21.5
