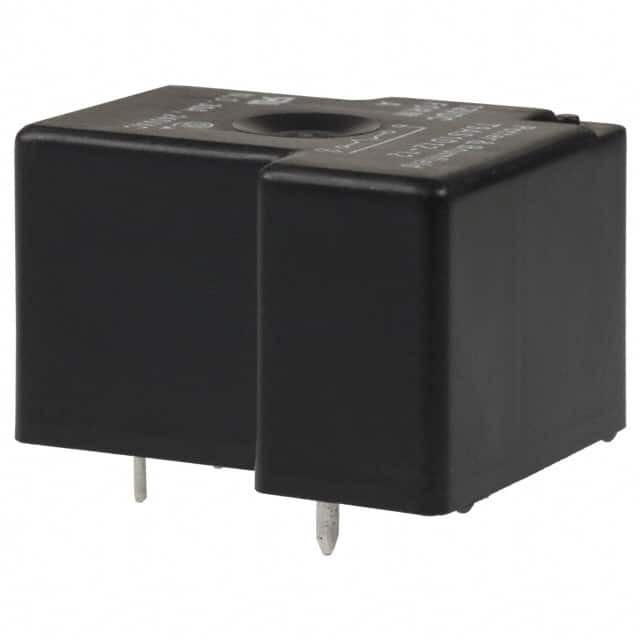

T9AS5D12-48

SKU: 38204

Manufacturer: TE Connectivity

Power Relay 48VDC 20(NO)/10(NC)A SPDT(32.51x27.43x27.94)mm THT

3060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	48
Coil Current (mA)	21
Coil Resistance (Ohm)	2.304K
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	75
Maximum Pick-Up Voltage	36VDC
Minimum Dropout Voltage	4.8VDC
Maximum AC Switching Voltage (V)	277
Maximum Switching Current (A)	20(NO)/10(NC)
Operate Time (ms)	15
Release Time (ms)	15
Mechanical Life (Operations)	10000000
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	5
Operating Temperature-Min	-55
Operating Temperature-Max	85
Product Weight (g)	26
Length (mm)	32.51
Depth (mm)	27.43
