T92S11D22-12

SKU: 142310

Manufacturer: TE Connectivity

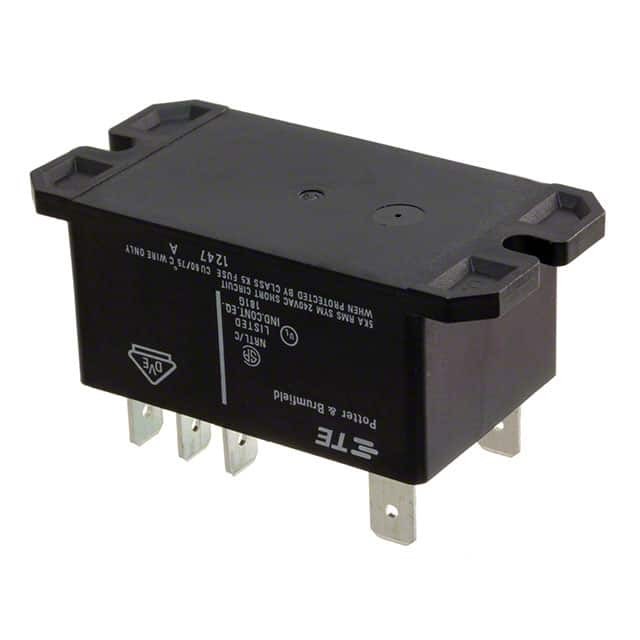

Power Relay 12VDC 30A DPDT(68.58x34.54x37.97)mm Flange

3360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	12
Coil Current (mA)	139.5
Coil Resistance (Ohm)	86
Maximum Pick-Up Voltage	9VDC
Minimum Dropout Voltage	1.2VDC
Maximum AC Switching Voltage (V)	600
Maximum Switching Current (A)	30
Operate Time (ms)	25
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Flange Mount
Terminal Form	Quick Connect
Number of Terminals	8
Operating Temperature-Min	-55
Operating Temperature-Max	85
Package Type	Dust Cover
Product Weight (g)	86
Length (mm)	68.58
Depth (mm)	34.54
