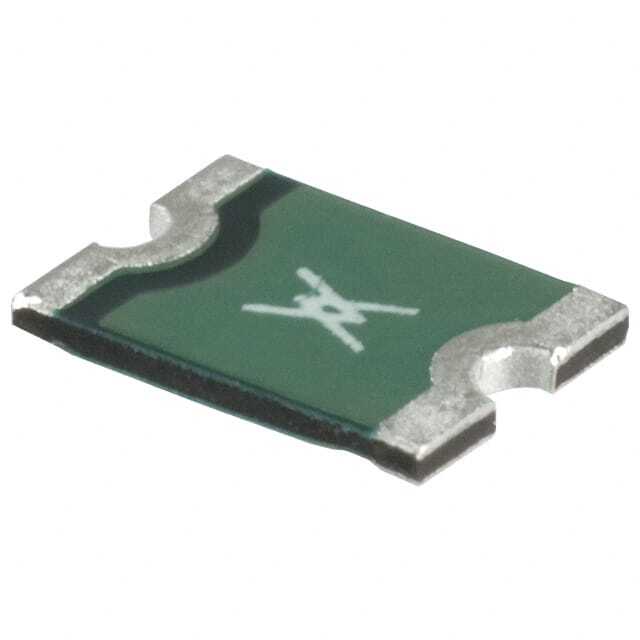

SMDC300F/24-2

SKU: 52361

Manufacturer: TE Connectivity

PTC Resettable Fuse 3A(hold) 6A(trip) 24VDC 40A 1.7W 5s 0.015Ohm SMD Solder Pad 7.7 X 5.3 X 1.1mm T/R Automotive

3210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	Unknown
PPAP	Unknown
Voltage Rating-Max	24VDC
Current Rating-Max(A)	40
Hold Current (A)	3
Trip Current (A)	6
Minimum Initial Resistance (Ohm)	0.015
Maximum Post Trip Resistance (Ohm)	0.072
Typical Power Dissipation (W)	1.7(Max)
Maximum Trip Time (s)	5@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	7.7 X 5.3 X 1.1
Length (mm)	7.7(Max)
Depth (mm)	5.3(Max)
Height (mm)	1.1(Max)
Case Code - in	SMD
