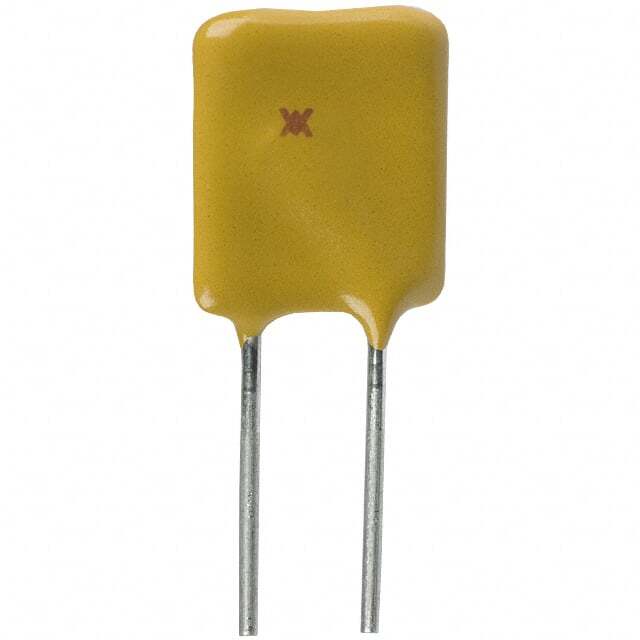

RUEF300K-2

SKU: 158343

Manufacturer: TE Connectivity

PTC Resettable Fuse 3A(hold) 6A(trip) 30VAC/30VDC 100A 2W 10.8s 0.02Ohm Radial 11.4 X 3 X 16.5mm T/R

990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
Automotive	No
PPAP	No
Voltage Rating-Max	30VAC
Current Rating-Max(A)	100
Hold Current (A)	3
Trip Current (A)	6
Minimum Initial Resistance (Ohm)	0.02
Maximum Initial Resistance (Ohm)	0.05
Maximum Post Trip Resistance (Ohm)	0.08
Typical Power Dissipation (W)	2
Maximum Trip Time (s)	10.8@15A
Terminal Form	Radial
Terminal Pitch (mm)	5.8(Max)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Size (mm)	11.4 X 3 X 16.5
Wire Form	Straight
Length (mm)	11.4(Max)
Depth (mm)	3(Max)
Height (mm)	16.5(Max)
Seated Plane Height (mm)	16.5(Max)
