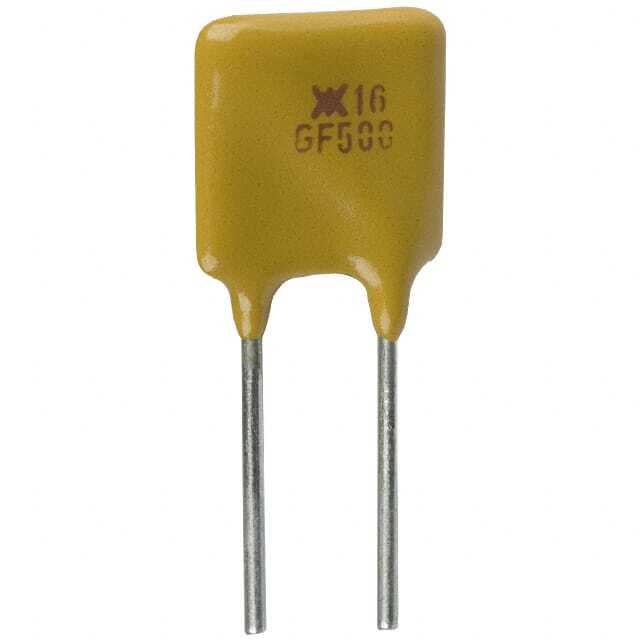

RF3233-000

SKU: 45122

Manufacturer: TE Connectivity

PTC Resettable Fuse 5A(hold) 8.5A(trip) 16VDC 100A 2.6W 2s 0.015Ohm Radial 10.4 X 3 X 14.3mm Bag

2200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8536.10.00.40
Automotive	No
PPAP	No
Voltage Rating-Max	16VDC
Current Rating-Max(A)	100
Hold Current (A)	5
Trip Current (A)	8.5
Minimum Initial Resistance (Ohm)	0.015
Maximum Initial Resistance (Ohm)	0.024
Maximum Post Trip Resistance (Ohm)	0.034
Typical Power Dissipation (W)	2.6
Maximum Trip Time (s)	2@25A
Terminal Form	Radial
Terminal Pitch (mm)	5.8(Max)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bag
Size (mm)	10.4 X 3 X 14.3
Wire Form	Straight
Lead Diameter (mm)	0.81
Length (mm)	10.4(Max)
Depth (mm)	3(Max)
Height (mm)	14.3(Max)
Seated Plane Height (mm)	14.3(Max)
