OJ-SH-105LMH000

SKU: 63334

Manufacturer: TE Connectivity

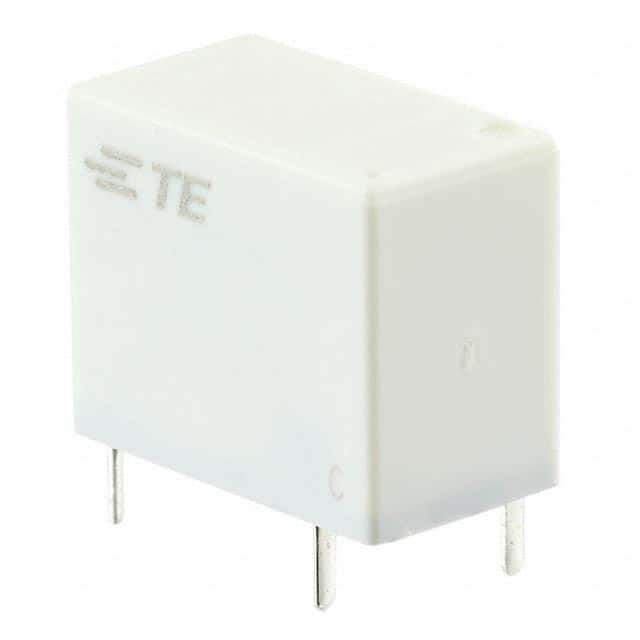

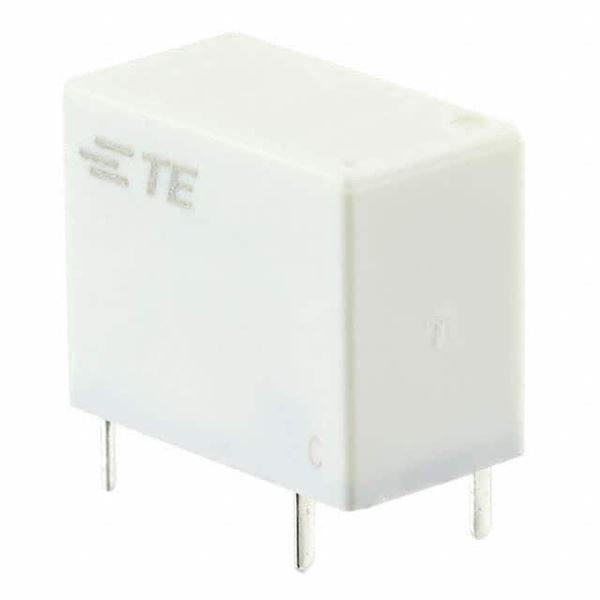

Power Relay 5VDC 8A SPST-NO(18.2mm 10.2mm 14.7mm) THT

1020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	5
Coil Current (mA)	40
Coil Resistance (Ohm)	125
Maximum AC Switching Voltage (V)	277
Maximum DC Switching Voltage (V)	30
Maximum Switching Current (A)	8
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Operating Temperature-Max	70
Product Weight (g)	9
Length (mm)	18.2
Depth (mm)	10.2
