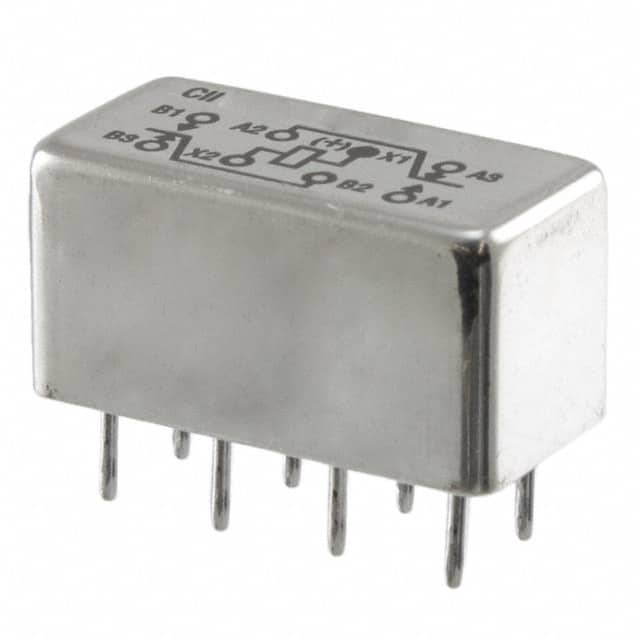

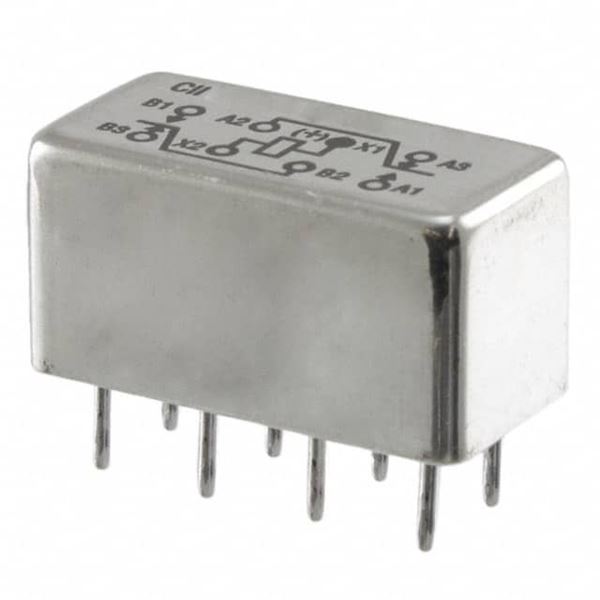

M39016/6-116M

SKU: 87217

Manufacturer: TE Connectivity

Signal Relay 12VDC 2A DPDT(20.57x10.41x10.41)mm THT

960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.20
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	12
Coil Current (mA)	75
Coil Resistance (Ohm)	160
Maximum Pick-Up Voltage	6.4VDC
Minimum Dropout Voltage	0.7VDC
Maximum AC Switching Voltage (V)	115
Maximum DC Switching Voltage (V)	28
Maximum Switching Current (A)	2
Operate Time (ms)	4
Release Time (ms)	4
Contact Body Material	Silver Alloy/Gold Plated
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	8
Seal	Sealed
Operating Temperature-Min	-65
Operating Temperature-Max	125
Product Weight (g)	13
Length (mm)	20.57
Depth (mm)	10.41
