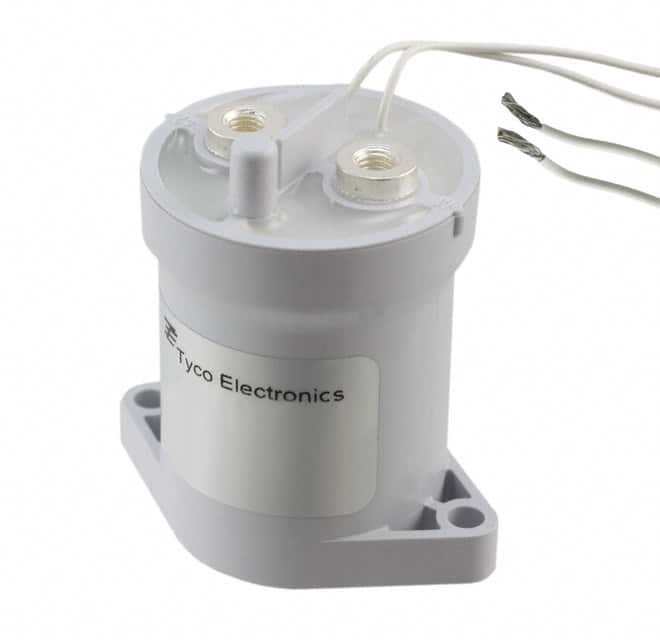

LEV100A5ANG

SKU: 68829

Manufacturer: TE Connectivity

Contactor 24VDC SPST-NO-DM 100A Bottom Mount Automotive

920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Height (mm)	57.96
Product Weight (g)	190
Depth (mm)	39.5
Length (mm)	46.3
Contact Form	1 Form X
Seal	Sealed
Stud Size	M5 X 10
Minimum Dropout Voltage	2.4VDC
DC Coil Voltage (V)	24
Coil Current (mA)	250
Contact Arrangement	SPST-NO-DM
Maximum DC Switching Voltage (V)	900
Current Rating-Max(A)	100
Terminal Form	Bottom Mount
Number of Terminals	2
Coil Resistance (Ohm)	96
Maximum Pick-Up Voltage	16VDC
Operating Temperature-Min	-40
