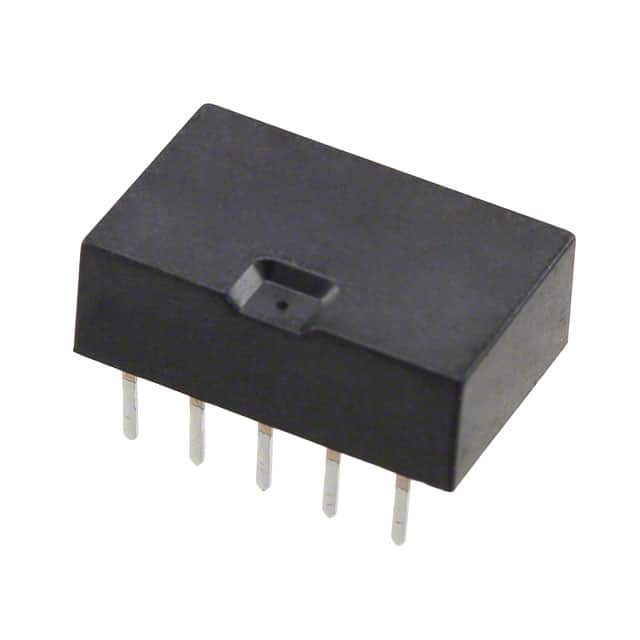

D3063

SKU: 157707

Manufacturer: TE Connectivity

Signal Relay 5VDC 2A DPDT( (14mm 9mm 5.25mm)) THT Automotive

1550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99 Export Control
Part Status	Obsolete
HTS	8536.41.00.60
Automotive	Unknown
PPAP	Unknown
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	5
Coil Current (mA)	40
Coil Resistance (Ohm)	125
Maximum Contact Resistance (mOhm)	<50
Insulation Resistance (MOhm)	>1000
Maximum Pick-Up Voltage	3.5VDC
Minimum Dropout Voltage	-3.5VDC
Maximum AC Switching Voltage (V)	250
Maximum DC Switching Voltage (V)	220
Maximum Switching Current (A)	2
Operate Time (ms)	2
Release Time (ms)	4
Electrical Life (Operations)	50000000
Mechanical Life (Operations)	100000000
Relay Construction	Latching Double Coil
Contact Body Material	Silver Nickel/Gold
Maximum Switching Power	62.5VA
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	10
IP Rating	IP67
Seal	Unsealed
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	DIP
Product Weight (g)	2
Length (mm)	14
Depth (mm)	9
