8-1437565-1

SKU: 66938

Manufacturer: TE Connectivity

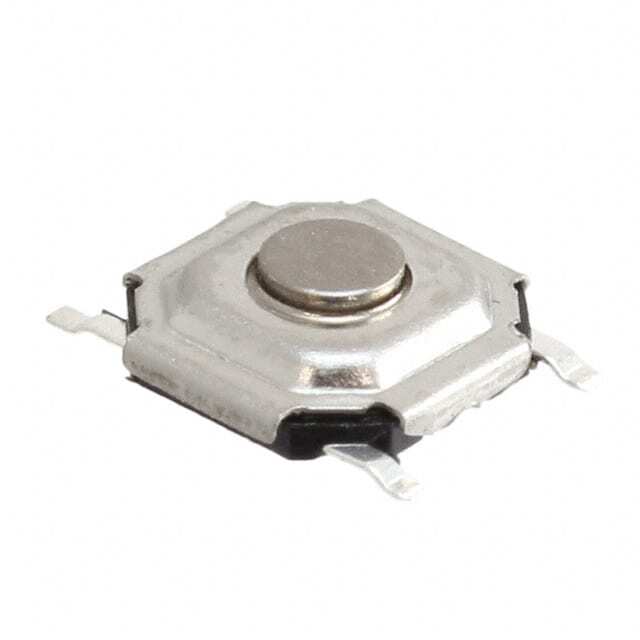

Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 24VDC 1.57N SMD T/R

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.90.85.85
SVHC	Yes
Automotive	No
PPAP	No
Actuator Style	Round Button
Pole Throw Configuration	SPST
Switching Function	Momentary
Switch Configuration	OFF (ON)
Current Rating-Max(A)	0.05@24VDC
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	100
Electrical Life (Cycles)	500000
Operating Force (N)	1.57
Row Spacing (mm)	6.2
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	4
Terminal Pitch (mm)	3.7
Body Orientation	Straight
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tape and Reel
Contact Plating	Silver Clad
