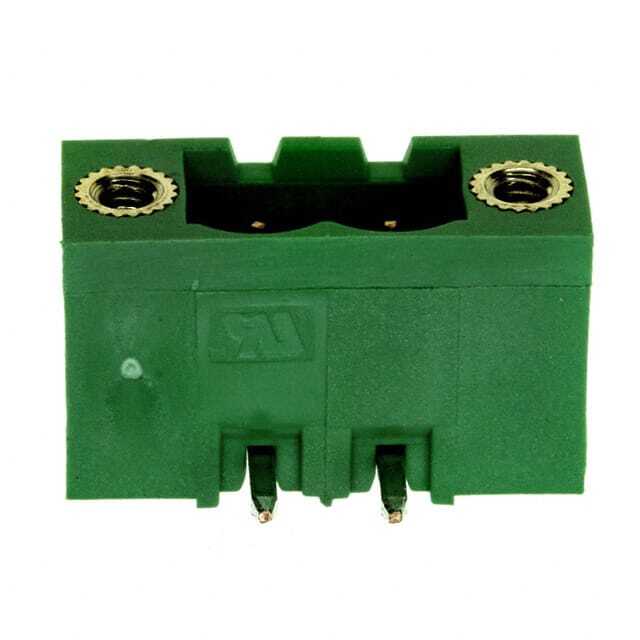

796864-2

SKU: 86417

Manufacturer: TE Connectivity

Conn Wire to Board HDR 2 POS 5mm Solder RA Side Entry Thru-Hole Carton

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	2
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	5
Body Orientation	Right Angle
Current Rating-Max(A)	15/Contact
Voltage Rating-Max	300VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-40
Operating Temperature-Max	110
Packing Method	Carton
Length (mm)	20
Depth (mm)	12
Height (mm)	8.35
Tail Length (mm)	3.5
