7-215079-8 TE Connectivity

7-215079-8

SKU: 123427

Manufacturer: TE Connectivity

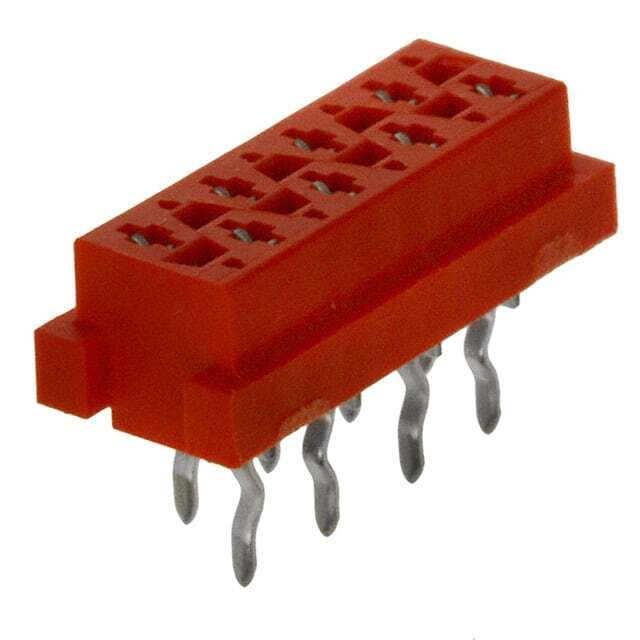

Conn Ribbon Cable Connector F 8 POS 1.27mm Solder ST Top Entry Thru-Hole Box/Carton

Download sample

Request Free Samples

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Ribbon Cable Connector
Gender	F
Number of Contacts	8
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	100VDC
Insulation Resistance (MOhm)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Box
Length (mm)	12.2
Depth (mm)	5.2
Height (mm)	4
Contact Plating Thickness	5um
Tail Length (mm)	3.1
