7-1393239-7 TE Connectivity

7-1393239-7

SKU: 31445

Manufacturer: TE Connectivity

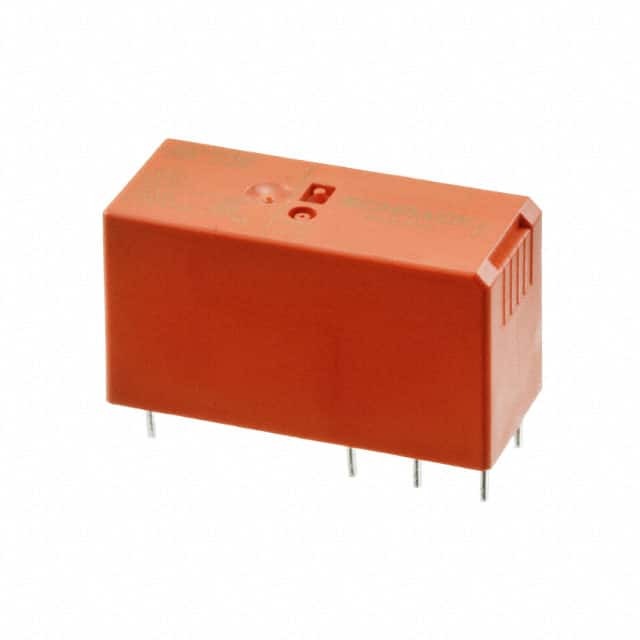

Power Relay 3VDC 16A SPDT(29mm 12.7mm 15.7mm) THT

Download sample

Request Free Samples

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.80
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	3
Coil Current (mA)	142.86
Coil Resistance (Ohm)	21
Maximum Pick-Up Voltage	2.1VDC
Minimum Dropout Voltage	1.7VDC
Maximum AC Switching Voltage (V)	400
Maximum Switching Current (A)	16
Operate Time (ms)	10
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Latching Single Coil
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	DIP
Product Weight (g)	14
Length (mm)	29
Depth (mm)	12.7
