650912-5

SKU: 58262

Manufacturer: TE Connectivity

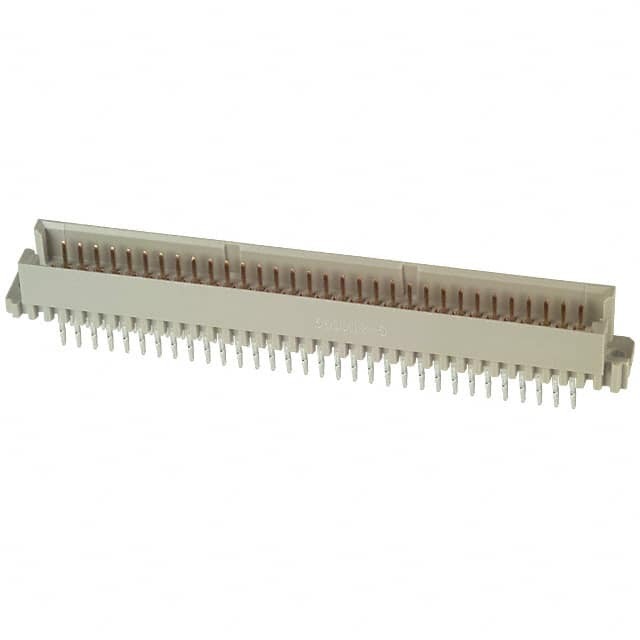

Conn DIN 41612 PIN 64 POS 2.54mm Solder ST Thru-Hole Box

3170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99 Export Control
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	DIN 41612
Gender	PIN
Number of Contacts	64
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Voltage Rating-Max	250VAC
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Box
Length (mm)	95
Depth (mm)	11.1
Height (mm)	11.51
