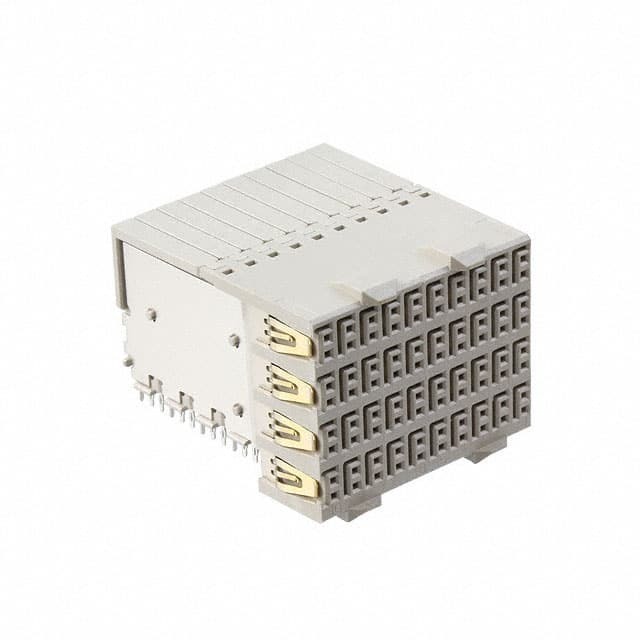

6469001-1

SKU: 24352

Manufacturer: TE Connectivity

Conn Advanced TCA RCP 80Signal/40Ground POS 2.5mm Press Fit RA Thru-Hole Tube

2990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Advanced TCA
Gender	RCP
Number of Contacts	80Signal/40Ground
Termination Method	Press Fit
Terminal Pitch (mm)	2.5
Body Orientation	Right Angle
Current Rating-Max(A)	7/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	10000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-65
Operating Temperature-Max	105
Packing Method	Tube
Length (mm)	24.95
Depth (mm)	28.9
Height (mm)	21.35
Tail Length (mm)	2.2
