6450849-7

SKU: 36973

Manufacturer: TE Connectivity

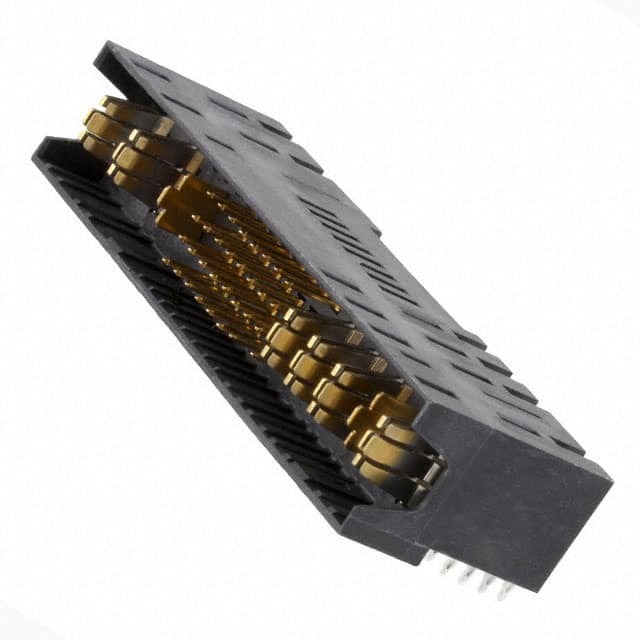

Conn Board to Board PL 8Power/32Signal POS 7.62mm/5.08mm/2.54mm Press Fit RA Side Entry Thru-Hole Tray

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
SVHC	Yes
Automotive	No
PPAP	No
Type	Board to Board
Gender	PL
Number of Contacts	8Power/32Signal
Number of Rows	1/4
Termination Method	Press Fit
Terminal Pitch (mm)	7.62/5.08/2.54
Body Orientation	Right Angle
Current Rating-Max(A)	50/Contact
Voltage Rating-Max	60VDC
Insulation Resistance (MOhm)	1000/500
Maximum Contact Resistance (mOhm)	0.7/1.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Mating Cycle (Cycles)	500
Packing Method	Tray
Length (mm)	71.62
Depth (mm)	23.62
Height (mm)	14.57
Tail Length (mm)	5.33
