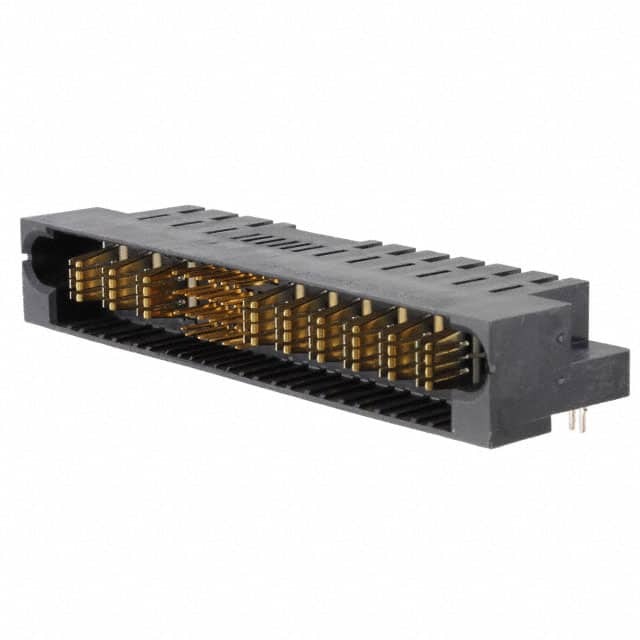

6450130-4

SKU: 128847

Manufacturer: TE Connectivity

Conn Power HDR 7Power/24Signal POS Solder RA Thru-Hole 80 Terminal 1 Port Tray

4220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Power
Gender	HDR
Number of Contacts	7Power/24Signal
Number of Terminals	80
Number of Ports	1
Termination Method	Solder
Body Orientation	Right Angle
Current Rating-Max(A)	42/Contact
Voltage Rating-Max	60VAC)
Maximum Contact Resistance (mOhm)	0.7
Operating Temperature-Min	-20
Operating Temperature-Max	105
Housing Color	Black
Packing Method	Tray
Length (mm)	80.01
Depth (mm)	23.62
Height (mm)	14.57
Terminal Form	Through Hole
Contact Plating	Gold Over Nickel
