5767139-1

SKU: 93382

Manufacturer: TE Connectivity

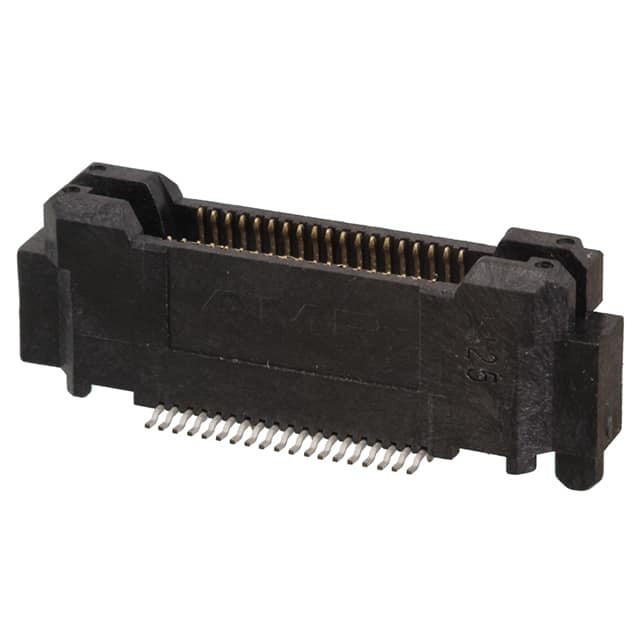

Conn High Speed Fine Pitch Connector PL 38 POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Tube

1500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	High Speed Fine Pitch Connector
Gender	PL
Number of Contacts	38
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54/0.64
Body Orientation	Straight
Current Rating-Max(A)	(11.5/1)/Contact
Voltage Rating-Max	30VAC
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Length (mm)	25.4
Depth (mm)	8.33
Height (mm)	8.86
