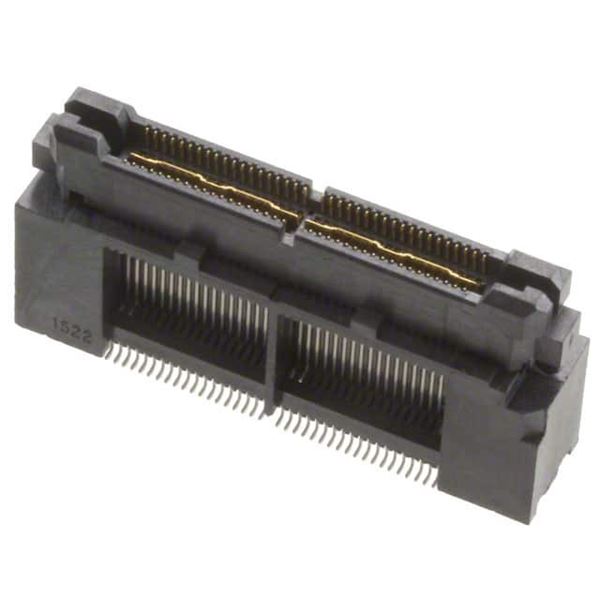

5767042-2

SKU: 86390

Manufacturer: TE Connectivity

Conn High Speed Fine Pitch Connector PL 2Power/76Signal POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Box/Tube

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99 Export Control
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	High Speed Fine Pitch Connector
Gender	PL
Number of Contacts	2Power/76Signal
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54/0.64
Body Orientation	Straight
Speed Rating (Gbps)	10
Current Rating-Max(A)	11.5/Contact
Voltage Rating-Max	30VAC
Insulation Resistance (MOhm)	2
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	500
Packing Method	Box
Length (mm)	38.1
Depth (mm)	8.13
Height (mm)	19.79
