5747497-4

SKU: 130513

Manufacturer: TE Connectivity

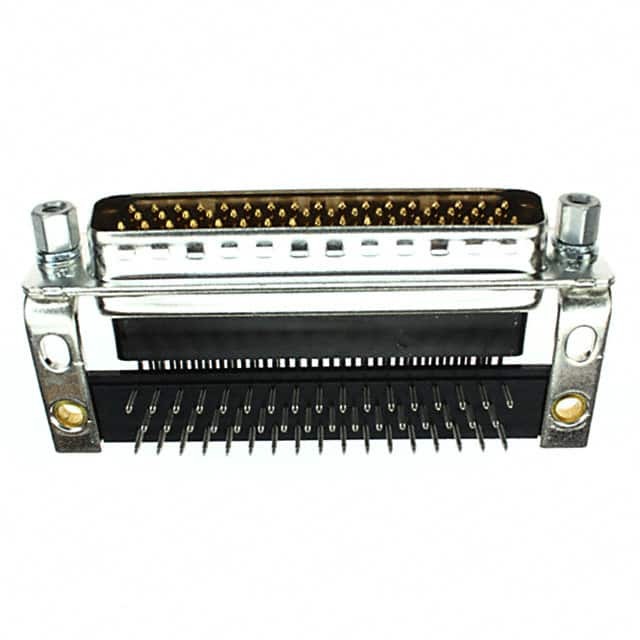

Conn D-Subminiature PIN 50 POS 1.38mm Solder RA Thru-Hole 50 Terminal 1 Port Tube

4250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	D-Subminiature
Gender	PL
Number of Contacts	50
Number of Terminals	50
Number of Ports	1
Number of Rows	3
Termination Method	Solder
Terminal Pitch (mm)	1.38
Body Orientation	Right Angle
Contact Gender	PIN
Current Rating-Max(A)	6/Contact
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	105
Shell Body Material	Carbon Steel
Shell Plating	Tin Over Copper
Shell Size	5
Less Contact	No
Packing Method	Tube
Length (mm)	66.92
Depth (mm)	29.18
Height (mm)	15.36
Contact Plating	Gold Over Nickel
Contact Body Material	Brass
