5555141-1

SKU: 65256

Manufacturer: TE Connectivity

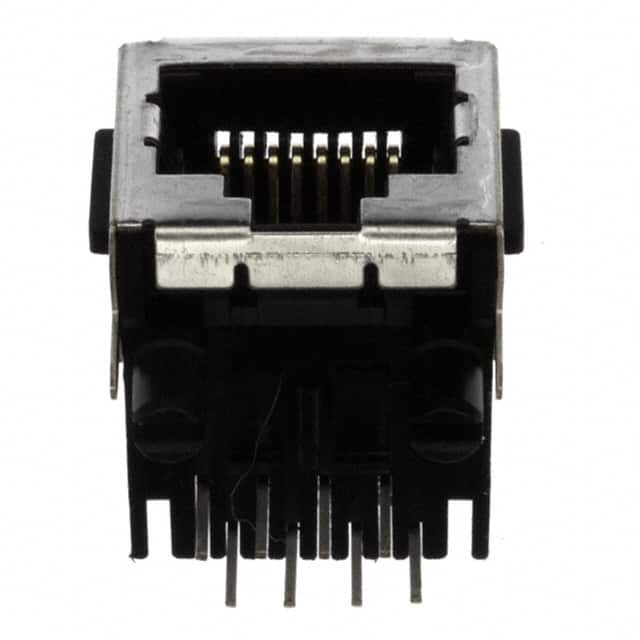

Conn RJ-45 F 8 POS 1.27mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 3 Box/Package/Tray

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	RJ-45
Gender	F
Number of Terminals	8
Number of Contacts	8
Number of Ports	1
Number of Loaded Positions	8
Category Number	Cat 3
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	150VAC
Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	30
Mating Cycle (Cycles)	750
Integrated Magnetics	No
Shell Body Material	Copper Alloy
Shell Plating	Tin
Operating Temperature-Min	-40
Shielding	Yes
Operating Temperature-Max	85
Packing Method	Box
Product Style	Single
Length (mm)	17.91
Depth (mm)	18.67
Height (mm)	12.7
Spring Option	Yes
Tab Direction	Down
Distance Between Begs (mm)	11.43
Distance Between Shield Pins (mm)	15.25
