5535032-4

SKU: 79270

Manufacturer: TE Connectivity

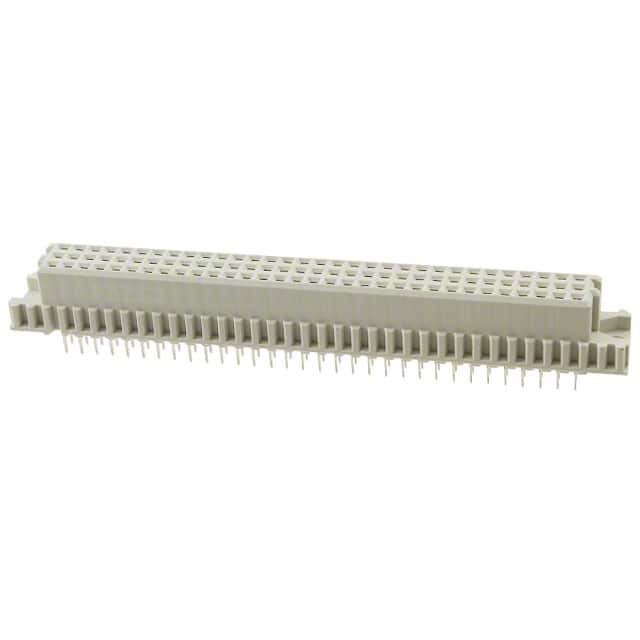

Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole Box

2980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	DIN 41612
Gender	F
Number of Contacts	96
Termination Method	Press Fit
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	250VAC
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Box
Length (mm)	93.98
Depth (mm)	10.59
Height (mm)	11.51
