5227222-3 TE Connectivity

5227222-3

SKU: 79261

Manufacturer: TE Connectivity

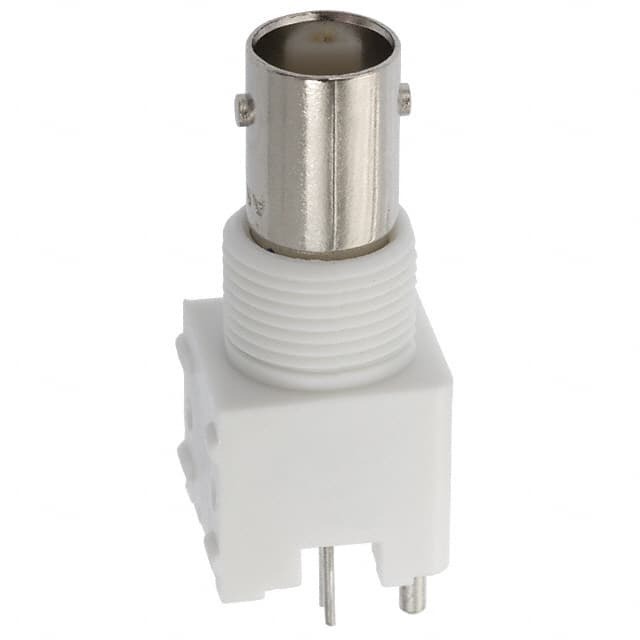

Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Tube

Download sample

Request Free Samples

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.10
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	BNC
Gender	RCP
Termination Method	Solder
Body Orientation	Straight
Contact Gender	SKT
Contact Plating	Gold Over Nickel
Operating Frequency (Hz)	0 to 4G
Impedance (Ohm)	50
Insulation Resistance (MOhm)	5000
Mating System	Bayonet Lock
Mating Cycle (Cycles)	500
Polarity	Standard
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tube
Length (mm)	14.76
Depth (mm)	15.88
Height (mm)	34.93
