5177983-2

SKU: 121816

Manufacturer: TE Connectivity

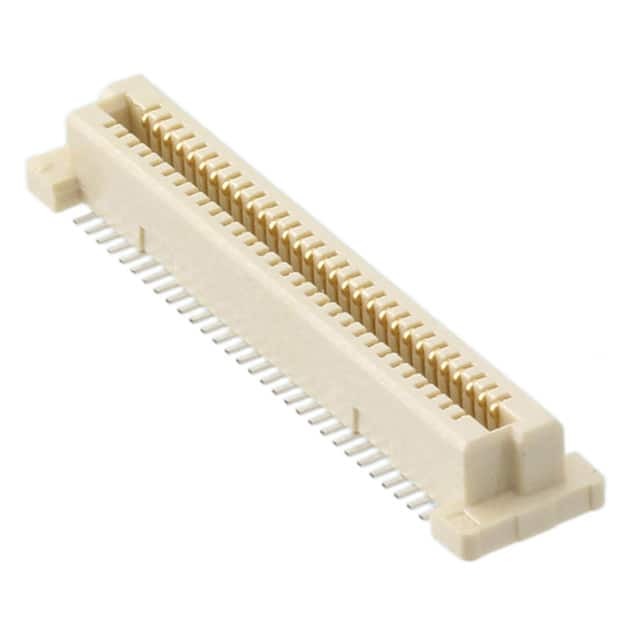

Conn Fine Pitch Connector RCP 60 POS 0.8mm Solder ST Top Entry SMD Box/Tube

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Fine Pitch Connector
Gender	RCP
Number of Contacts	60
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Straight
Polarization Type	Dual Slot
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	100VAC
Insulation Resistance (MOhm)	2
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-40
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Box
Length (mm)	29.8
Depth (mm)	6
Height (mm)	3.75
Contact Plating Thickness	0.2um
