5176381-4 TE Connectivity

5176381-4

SKU: 107557

Manufacturer: TE Connectivity

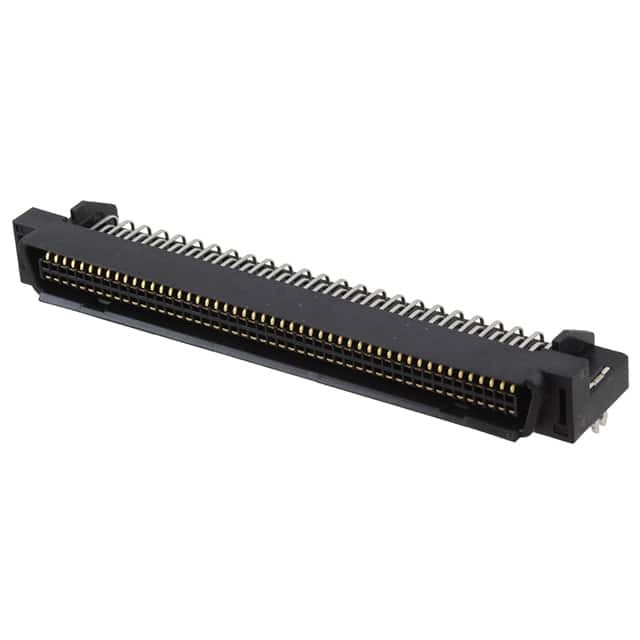

Conn High Density PL 100 POS 1.27mm Solder RA Thru-Hole 100 Terminal 1 Port Tray

Download sample

Request Free Samples

1520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	High Density
Gender	PL
Number of Terminals	100
Number of Contacts	100
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Voltage Rating-Max	250VAC
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Length (mm)	74.85
Depth (mm)	16.2
Height (mm)	5.8
Terminal Form	Through Hole
Contact Plating	Gold
