5145154-8

SKU: 51170

Manufacturer: TE Connectivity

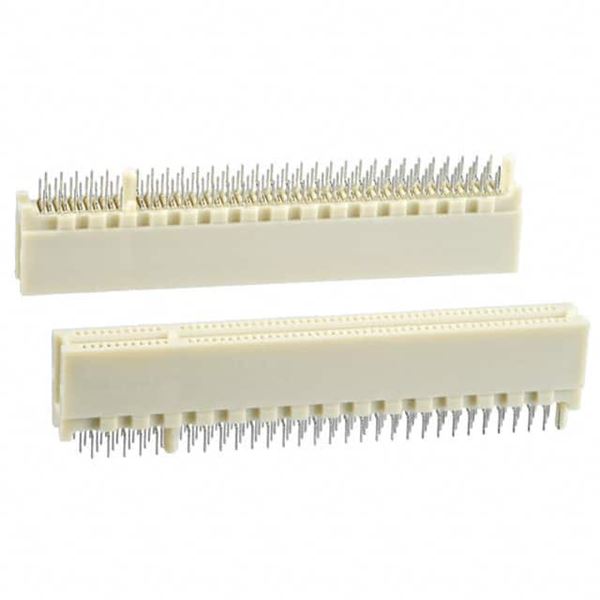

Conn PCI Express Card Edge SKT 120 POS 1.27mm Solder ST Thru-Hole Box/Carton

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	PCI Express Card Edge
Gender	SKT
Card Type	PCI
Number of Contacts	120
Number of Rows	2
Termination Method	Solder
Contact Type	Cantilever Bellows
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Mounting Styles	2 Plastic Pylons
Current Rating-Max(A)	1.1/Contact
Voltage Rating-Max	203VAC
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Box
Product Weight (g)	12.58
Length (mm)	84.84
Depth (mm)	8.89
Height (mm)	15.49
Tail Length (mm)	4.06
