5100143-1

SKU: 72262

Manufacturer: TE Connectivity

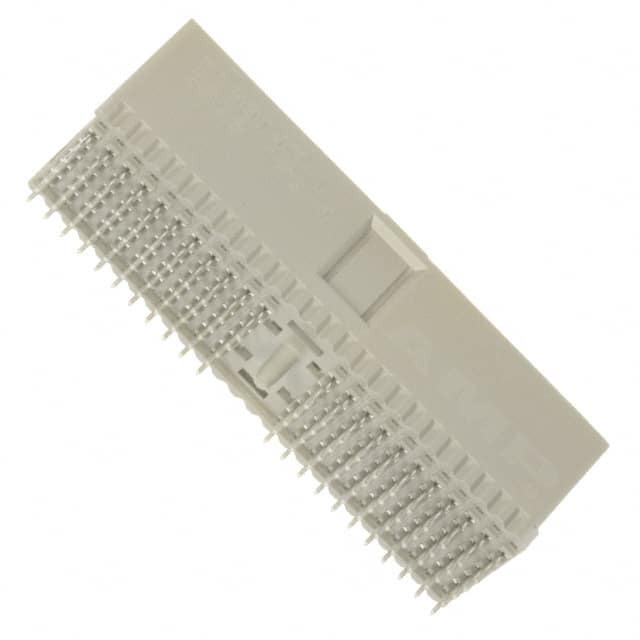

Conn Hard Metric PL 110 POS 2mm Press Fit ST Thru-Hole Tube

2380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Hard Metric
Gender	PL
Number of Contacts	110
Termination Method	Press Fit
Terminal Pitch (mm)	2
Body Orientation	Straight
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	500VAC
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Length (mm)	49.9
Depth (mm)	15.4
Height (mm)	13.45
Tail Length (mm)	3.7
