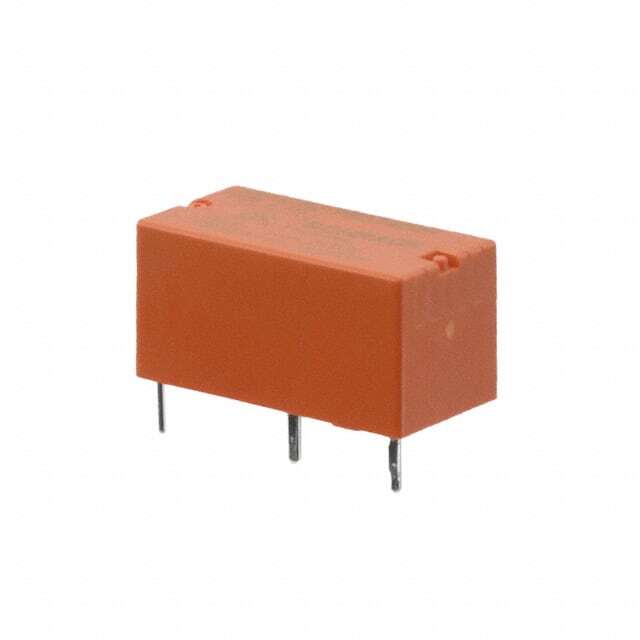

5-1415535-1 TE Connectivity

5-1415535-1

SKU: 17331

Manufacturer: TE Connectivity

Power Relay 24VDC 5A SPST-NO(20mm 10mm 10mm) THT

Request Free Samples

4110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.49.00.65
Automotive	No
PPAP	No
Contact Arrangement	SPST-NO
Contact Form	1 Form A
DC Coil Voltage (V)	24
Coil Current (mA)	8.8
Coil Resistance (Ohm)	2.725K
Insulation Resistance (MOhm)	>10000
Maximum Pick-Up Voltage	18VDC
Minimum Dropout Voltage	2.4VDC
Maximum AC Switching Voltage (V)	250
Maximum Switching Current (A)	5
Operate Time (ms)	8
Release Time (ms)	8
Mechanical Life (Operations)	>15000000
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Through Hole
Terminal Form	PC Pin
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	5
Length (mm)	20
Depth (mm)	10
