440054-8

SKU: 93356

Manufacturer: TE Connectivity

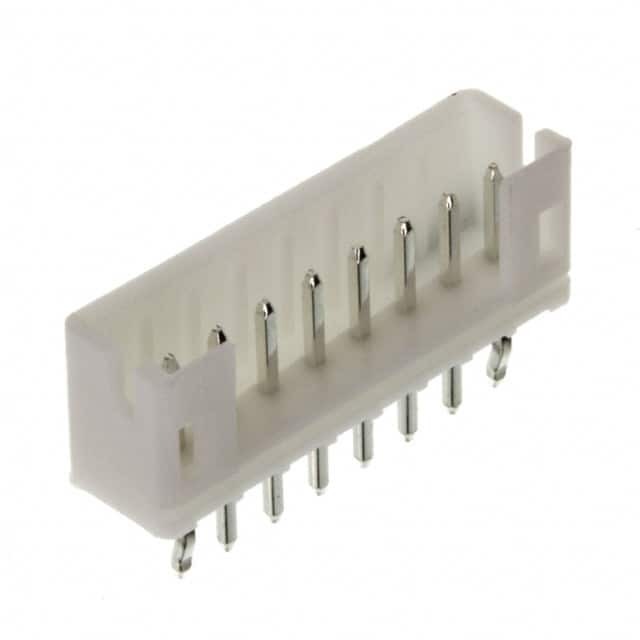

Conn Wire to Board HDR 8 POS 2mm Solder ST Thru-Hole Bag

1120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	8
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Straight
Polarization Type	Dual Slot
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	250VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Bag
Length (mm)	18
Depth (mm)	4.7
Height (mm)	6.05
