4-1419111-2

SKU: 38510

Manufacturer: TE Connectivity

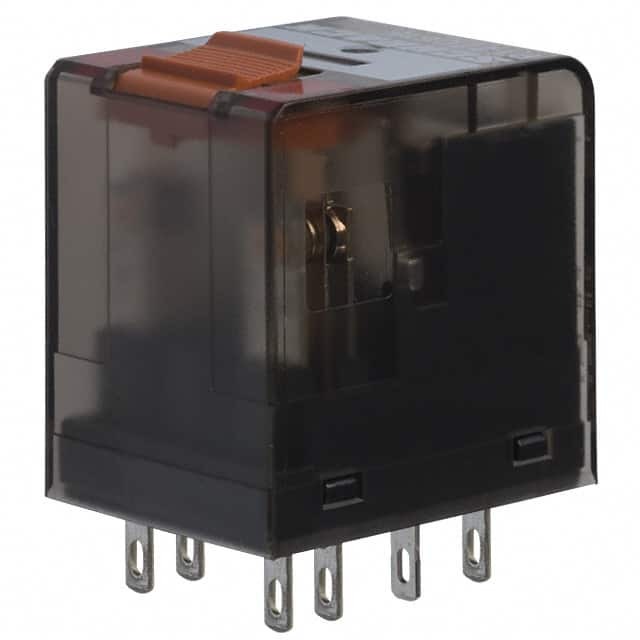

Power Relay 24VDC 12A DPDT(28mm 22.5mm 29mm) Socket

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	24
Coil Current (mA)	30.89
Coil Resistance (Ohm)	777
Maximum Pick-Up Voltage	18VDC
Minimum Dropout Voltage	2.4VDC
Maximum AC Switching Voltage (V)	400
Maximum Switching Current (A)	12
Maximum Switching Power	3kVA
Operate Time (ms)	15
Release Time (ms)	10
LED Indicator	No
Push to Test Button	Yes
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Socket
Terminal Form	Quick Connect/Solder
Number of Terminals	8
Operating Temperature-Min	-40
Operating Temperature-Max	70
Package Type	DIP
Product Weight (g)	30
Length (mm)	28
Depth (mm)	22.5
