    353293-8

    SKU: 51154
    Manufacturer: TE Connectivity

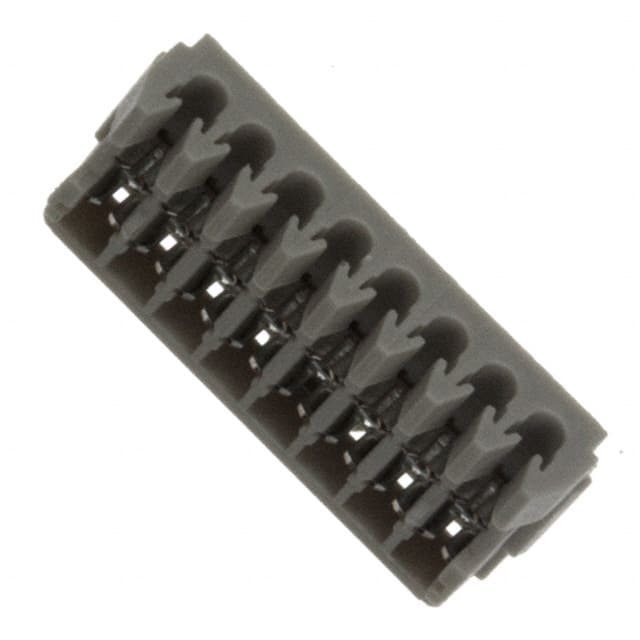

    Conn Wire to Board F 8 POS 1.5mm IDT ST Cable Mount Bag
    2150 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8536.69.40.40
    SVHC Yes
    Automotive No
    PPAP No
    Type Wire to Board
    Gender F
    Number of Contacts 8
    Number of Rows 1
    Termination Method IDT
    Terminal Pitch (mm) 1.5
    Body Orientation Straight
    Current Rating-Max(A) 2/Contact
    Voltage Rating-Max 50VDC
    Insulation Resistance (MOhm) 500
    Maximum Contact Resistance (mOhm) 20
    Operating Temperature-Min -30
    Operating Temperature-Max 105
    Mating Cycle (Cycles) 30
    Packing Method Bag
    Product Weight (g) 0.4
    Length (mm) 13.5
    Depth (mm) 6
    Height (mm) 3.6
