3-794627-6

SKU: 73801

Manufacturer: TE Connectivity

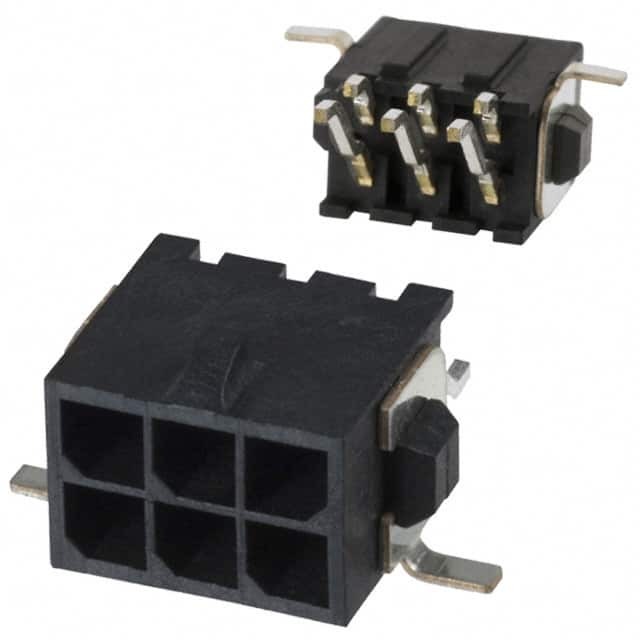

Conn Power HDR 6 POS 3mm Solder RA SMD 6 Terminal 1 Port Box/Tray

2480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Power
Gender	HDR
Number of Contacts	6
Number of Terminals	6
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	3
Body Orientation	Right Angle
Current Rating-Max(A)	5/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	10
Wire Size (AWG)	20
Packing Method	Tray
Depth (mm)	15.63
Height (mm)	8.67
Terminal Form	Surface Mount
Contact Plating	Matte Tin Over Nickel
